Benchmarks and Results

This page summarizes the evaluation from the RoboPrec paper for robotics workloads, and illustrates how the same pipeline can inform precision choices for other numeric code.

For full details, see the paper and the figures referenced below.

Workloads, robots, and platforms

  • Algorithms: forward kinematics (FK), RNEA, RNEA derivatives.
  • Robots: RoArm‑M2, RoArm‑M3, Indy7, Franka Emika Panda.
  • Hardware:
    • Embedded: RP2040, RP2350‑RISC‑V, RP2350‑ARM.
    • Desktop/server‑class: Raspberry Pi 5, Intel i7‑14700K.

All code is compiled with g++ -O3.

Performance across CPUs

RoboPrec measures how double, float, and various fixed‑point formats perform on each platform. The main performance plots in the paper are:

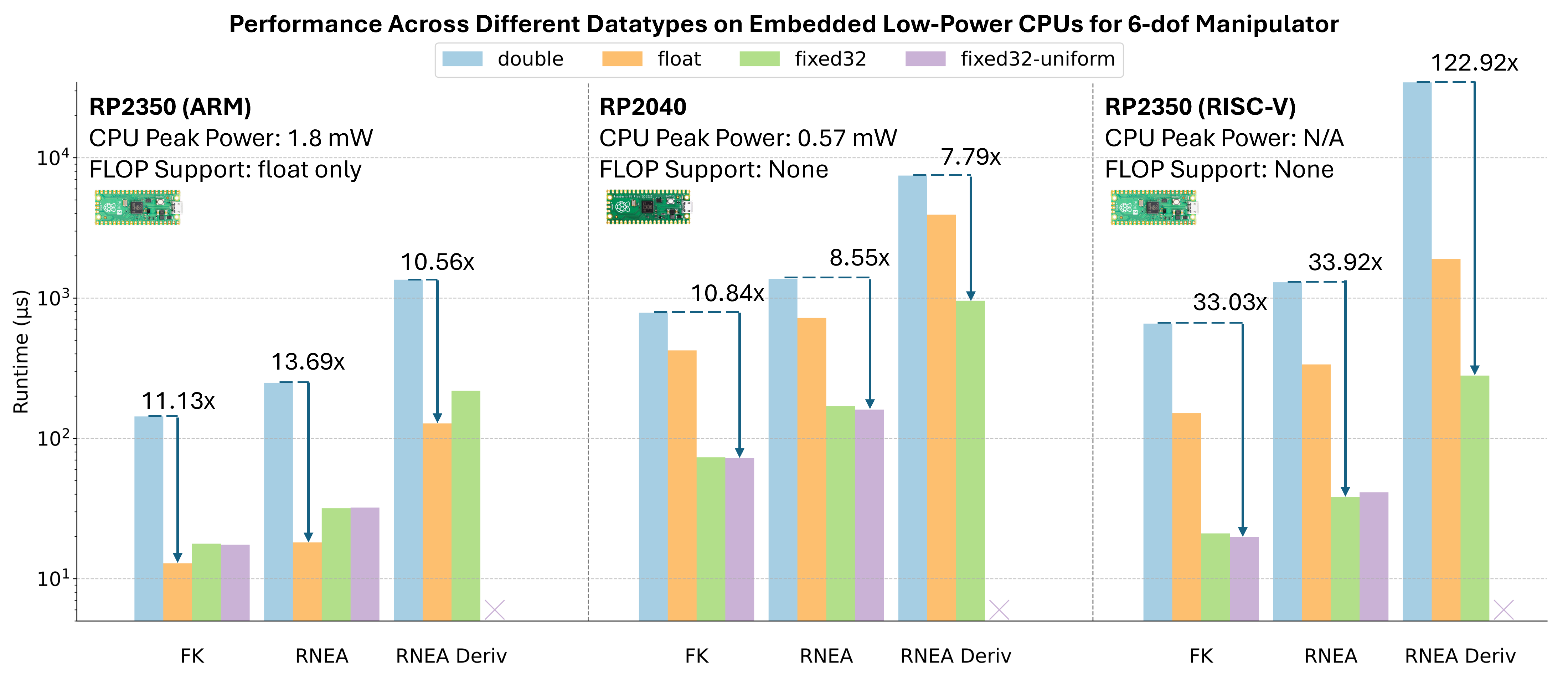

Embedded CPU runtimes Figure: Runtimes across embedded CPUs (RP2040, RP2350‑RISC‑V, RP2350‑ARM).

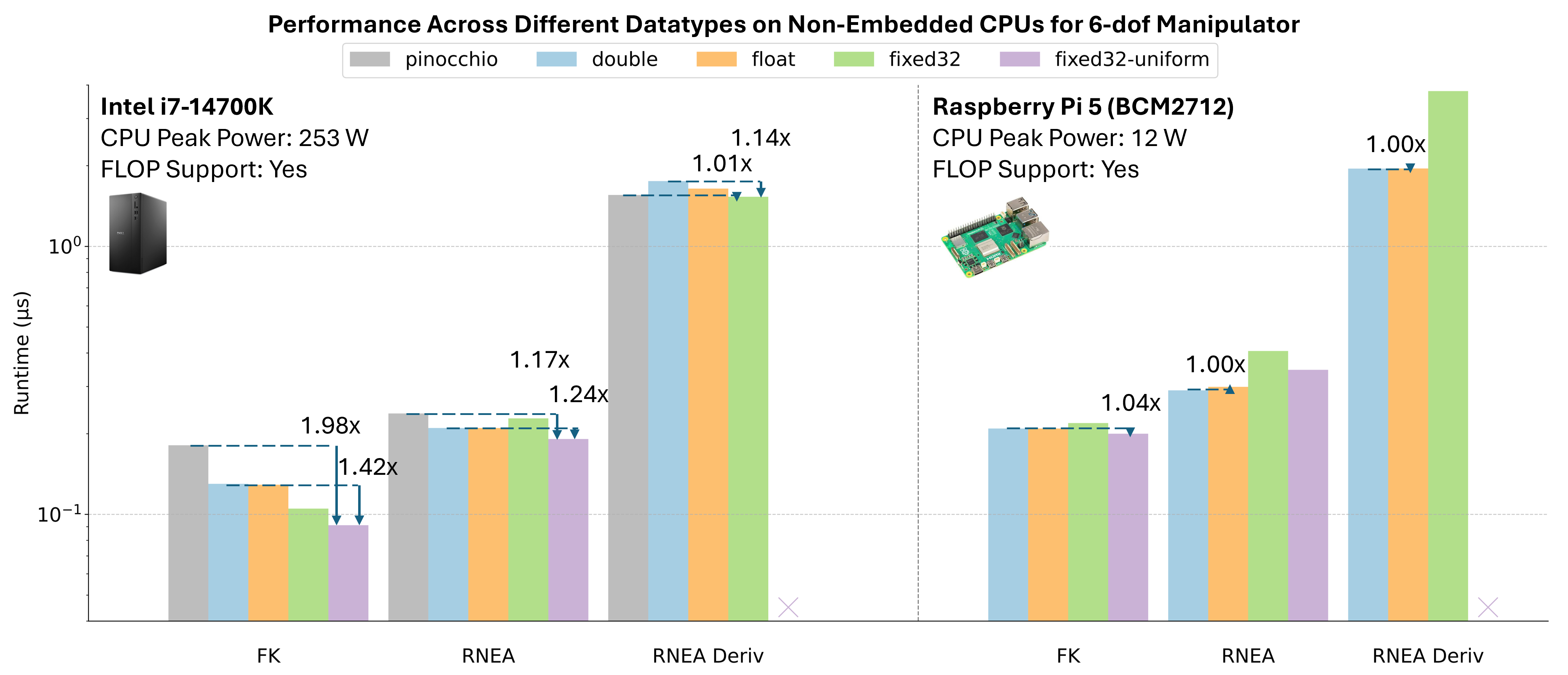

Non‑embedded CPU runtimes Figure: Runtimes on non‑embedded CPUs (Raspberry Pi 5, Intel i7‑14700K).

Key observations:

Embedded (no / limited FPUs)

  • On RP2040 and RP2350‑RISC‑V (no FPU):
    • double is software‑emulated and very slow.
    • RoboPrec‑generated fixed‑point code (e.g., 32‑bit fixed) can be an order of magnitude faster than float, and up to ~\(122\times\) faster than double on some kernels.
  • On RP2350‑ARM (single‑precision FPU):
    • float is usually the fastest choice.
    • Fixed‑point is still faster than double, and can be attractive when you need better accuracy than float (see below).

Desktop / server CPUs

  • On Raspberry Pi 5, double tends to be the best trade‑off.
  • On Intel i7‑14700K:
  • Uniform fixed‑point (e.g., fixed32) can match or exceed double performance (≈1.0–1.4× speedups on some kernels).

Even though RoboPrec is motivated by embedded robotics, these results suggest that precision tuning can also matter on full CPUs, especially for hotspots inside larger controllers or simulators.

Worst‑case error guarantees

RoboPrec uses static analysis to compute worst‑case numeric error for each datatype and workload. The paper’s worst‑case error figure is:

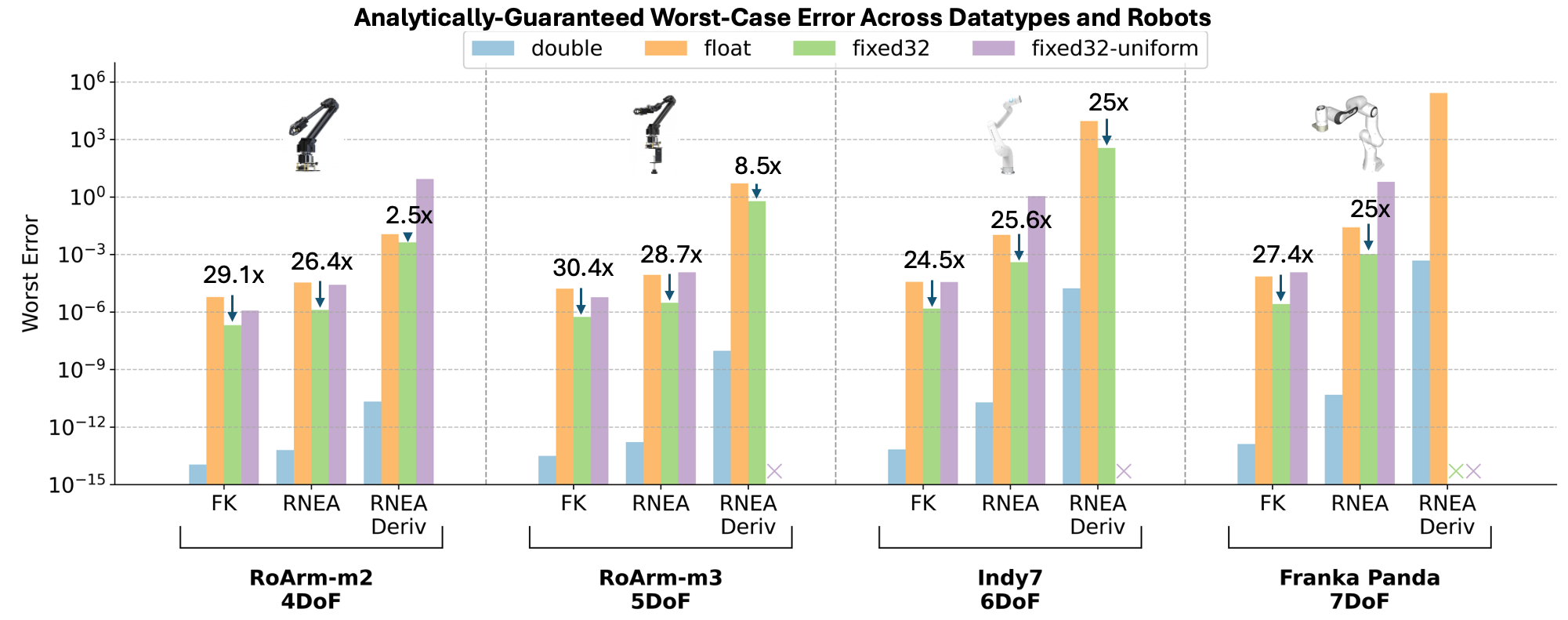

Worst‑case error bounds Figure: Worst‑case error bounds across datatypes, robots, and algorithms.

Highlights:

  • As expected, double gives the tightest bounds.
  • A key result for robotics and more general numerics:

For many dynamics‑style kernels, 32‑bit fixed‑point (fixed32) has better worst‑case error bounds than float, even though both use 32 bits.

  • Across our case studies, fixed32 shows \(2.5\times\)–\(30.4\times\) smaller worst‑case error than float, depending on the workload.
  • For very complex workloads (e.g., RNEA derivatives on 7‑DOF arms), some fixed‑point formats hit potential overflow in the analysis. RoboPrec then refuses to certify those precisions, which is exactly the kind of failure mode we want to expose before deployment.

These guarantees apply to robotics, but the same reasoning extends to any numeric kernel where you can specify input ranges.

For more detailed methodology and additional plots, please refer to the RoboPrec paper.
